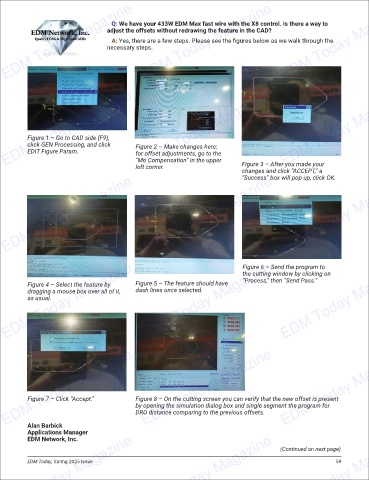

Q: We have your 433W EDM Max fast wire with the X8 control. Is there a way to
adjust the offsets without redrawing the feature in the CAD?
A: Yes, there are a few steps. Please see the fi gures below as we walk through the
necessary steps.

EDM Today Magazine
EDM Today Magazine Figure 2 – Make changes here; EDM Today Magazine

Figure 1 – Go to CAD side (F9),
click GEN Processing, and click
EDIT Figure Param.
for offset adjustments, go to the
“Mo Compensation” in the upper
Figure 3 – After you made your
left corner.
changes and click “ACCEPT,” a
“Success” box will pop up, click OK.
EDM Today Magazine EDM Today Magazine EDM Today Magazine

EDM Today Magazine Figure 5 – The feature should have Figure 6 – Send the program to
EDM Today Magazine
EDM Today Magazine
the cutting window by clicking on
“Process,” then “Send Pass.”
Figure 4 – Select the feature by
dash lines once selected.
dragging a mouse box over all of it,
as usual.

EDM Today Magazine
EDM Today Magazine
EDM Today Magazine Figure 8 – On the cutting screen you can verify that the new offset is present

Figure 7 – Click “Accept.”
by opening the simulation dialog box and single segment the program for

Alan Barbick
Applications Manager DRO distance comparing to the previous offsets. (Continued on next page)
EDM Today Magazine EDM Today Magazine EDM Today Magazine
EDM Network, Inc.

59
