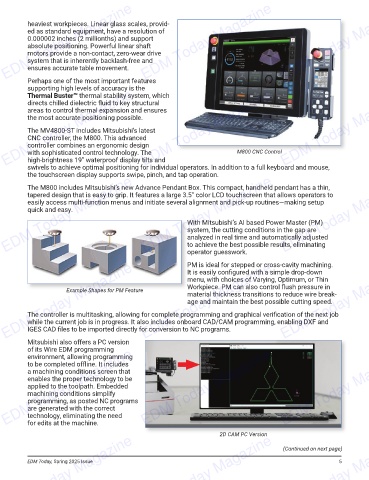

heaviest workpieces. Linear glass scales, provid-
ed as standard equipment, have a resolution of
0.000002 inches (2 millionths) and support
absolute positioning. Powerful linear shaft
motors provide a non-contact, zero-wear drive
system that is inherently backlash-free and
ensures accurate table movement.

Perhaps one of the most important features
supporting high levels of accuracy is the
EDM Today Magazine EDM Today Magazine EDM Today Magazine
Thermal Buster™ thermal stability system, which
directs chilled dielectric fl uid to key structural
areas to control thermal expansion and ensures
the most accurate positioning possible.

The MV4800-ST includes Mitsubishi’s latest
CNC controller, the M800. This advanced
controller combines an ergonomic design
with sophisticated control technology. The
high-brightness 19” waterproof display tilts and
swivels to achieve optimal positioning for individual operators. In addition to a full keyboard and mouse,
the touchscreen display supports swipe, pinch, and tap operation. M800 CNC Control
EDM Today Magazine EDM Today Magazine EDM Today Magazine
The M800 includes Mitsubishi’s new Advance Pendant Box. This compact, handheld pendant has a thin,
tapered design that is easy to grip. It features a large 3.5” color LCD touchscreen that allows operators to
easily access multi-function menus and initiate several alignment and pick-up routines—making setup
quick and easy.
With Mitsubishi’s AI based Power Master (PM)
With Mitsubishi’s AI based Power Master (PM)
system, the cutting conditions in the gap are
system, the cutting conditions in the gap are
analyzed in real time and automatically adjusted
analyzed in real time and automatically adjusted
to achieve the best possible results, eliminating
to achieve the best possible results, eliminating
operator guesswork.
operator guesswork.
PM is ideal for stepped or cross-cavity machining.
EDM Today Magazine EDM Today Magazine EDM Today Magazine
It is easily confi gured with a simple drop-down
menu, with choices of Varying, Optimum, or Thin
Workpiece. PM can also control fl ush pressure in
Workpiece. PM can also control fl ush pressure in
Example Shapes for PM Feature
material thickness transitions to reduce wire break-
age and maintain the best possible cutting speed.
The controller is multitasking, allowing for complete programming and graphical verifi cation of the next job
while the current job is in progress. It also includes onboard CAD/CAM programming, enabling DXF and
IGES CAD fi les to be imported directly for conversion to NC programs.

Mitsubishi also offers a PC version
of its Wire EDM programming
EDM Today Magazine EDM Today Magazine EDM Today Magazine
environment, allowing programming
to be completed offl ine. It includes
a machining conditions screen that
enables the proper technology to be
applied to the toolpath. Embedded
machining conditions simplify
programming, as posted NC programs
are generated with the correct
technology, eliminating the need
for edits at the machine.

2D CAM PC Version (Continued on next page)
