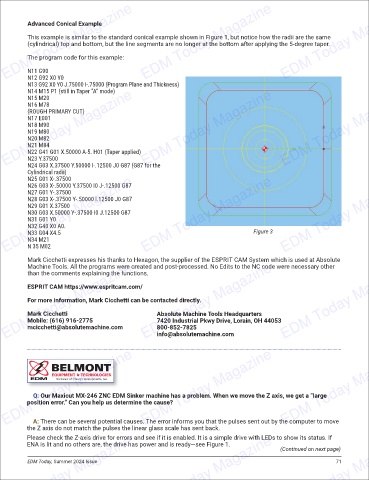

Advanced Conical Example

This example is similar to the standard conical example shown in Figure 1, but notice how the radii are the same
(cylindrical) top and bottom, but the line segments are no longer at the bottom after applying the 5-degree taper.

The program code for this example:

N11 G90
N12 G92 X0 Y0
N13 G92 X0 Y0 J.75000 I-.75000 (Program Plane and Thickness)
N14 M15 P1 (still in Taper “A” mode)
EDM Today Magazine EDM Today Magazine EDM Today Magazine
N15 M20
N16 M78
(ROUGH PRIMARY CUT)
N17 E001
N18 M90
N19 M80
N20 M82
N21 M84
N22 G41 G01 X.50000 A-5. H01 (Taper applied)
N23 Y.37500
N24 G03 X.37500 Y.50000 I-.12500 J0 G87 (G87 for the
Cylindrical radii)
N25 G01 X-.37500
EDM Today Magazine EDM Today Magazine EDM Today Magazine
N26 G03 X-.50000 Y.37500 I0 J-.12500 G87
N27 G01 Y-.37500
N28 G03 X-.37500 Y-.50000 I.12500 J0 G87
N29 G01 X.37500
N30 G03 X.50000 Y-.37500 I0 J.12500 G87
N31 G01 Y0
N32 G40 X0 A0.
Figure 3
N33 G04 X4.5
N34 M21
N 35 M02

Mark Cicchetti expresses his thanks to Hexagon, the supplier of the ESPRIT CAM System which is used at Absolute
EDM Today Magazine EDM Today Magazine EDM Today Magazine
Machine Tools. All the programs were created and post-processed. No Edits to the NC code were necessary other
than the comments explaining the functions.

ESPRIT CAM https://www.espritcam.com/
For more information, Mark Cicchetti can be contacted directly.

Mark Cicchetti
Absolute Machine Tools Headquarters
Mobile: (616) 916-2775
7420 Industrial Pkwy Drive, Lorain, OH 44053
800-852-7825
mcicchetti@absolutemachine.com
info@absolutemachine.com
EDM Today Magazine EDM Today Magazine EDM Today Magazine

Q: Our Maxicut MX-246 ZNC EDM Sinker machine has a problem. When we move the Z axis, we get a “large
position error.” Can you help us determine the cause?

A: There can be several potential causes. The error informs you that the pulses sent out by the computer to move
the Z axis do not match the pulses the linear glass scale has sent back. (Continued on next page)
Please check the Z-axis drive for errors and see if it is enabled. It is a simple drive with LEDs to show its status. If
EDM Today Magazine EDM Today Magazine EDM Today Magazine
ENA is lit and no others are, the drive has power and is ready—see Figure 1.
