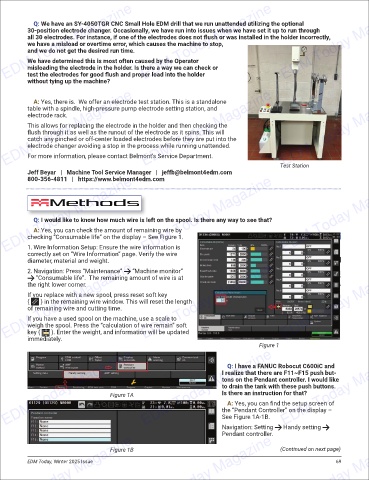

Q: We have an SY-4050TGR CNC Small Hole EDM drill that we run unattended utilizing the optional
30-position electrode changer. Occasionally, we have run into issues when we have set it up to run through
all 30 electrodes. For instance, if one of the electrodes does not fl ush or was installed in the holder incorrectly,
we have a misload or overtime error, which causes the machine to stop,
and we do not get the desired run time.
We have determined this is most often caused by the Operator
misloading the electrode in the holder. Is there a way we can check or
test the electrodes for good fl ush and proper load into the holder
without tying up the machine?
EDM Today Magazine EDM Today Magazine EDM Today Magazine
A: Yes, there is. We offer an electrode test station. This is a standalone
table with a spindle, high-pressure pump electrode setting station, and
electrode rack.
This allows for replacing the electrode in the holder and then checking the
fl ush through it as well as the runout of the electrode as it spins. This will
catch any pinched or off-center loaded electrodes before they are put into the
electrode changer avoiding a stop in the process while running unattended.
For more information, please contact Belmont’s Service Department.

Jeff Beyar | Machine Tool Service Manager | jeffb@belmont4edm.com Test Station
800-356-4811 | https://www.belmont4edm.com
EDM Today Magazine EDM Today Magazine EDM Today Magazine

Q: I would like to know how much wire is left on the spool. Is there any way to see that?
A: Yes, you can check the amount of remaining wire by
checking “Consumable life” on the display – See Figure 1.

1. Wire Information Setup: Ensure the wire information is
correctly set on “Wire Information” page. Verify the wire
diameter, material and weight. “Machine monitor”
EDM Today Magazine EDM Today Magazine EDM Today Magazine
2. Navigation: Press “Maintenance”
“Consumable life”. The remaining amount of wire is at
the right lower corner.
If you replace with a new spool, press reset soft key
) in the remaining wire window. This will reset the length
(
of remaining wire and cutting time.
If you have a used spool on the machine, use a scale to
weigh the spool. Press the “calculation of wire remain” soft
key (
). Enter the weight, and information will be updated
immediately.
Figure 1
EDM Today Magazine EDM Today Magazine EDM Today Magazine

Q: I have a FANUC Robocut C600iC and
I realize that there are F11~F15 push but-
tons on the Pendant controller. I would like
to drain the tank with these push buttons.
Is there an instruction for that?
Figure 1A
A: Yes, you can fi nd the setup screen of
the “Pendant Controller” on the display –
See Figure 1A-1B.
Navigation: Setting Handy setting
Pendant controller. (Continued on next page)
EDM Today Magazine EDM Today Magazine EDM Today Magazine
Figure 1B
